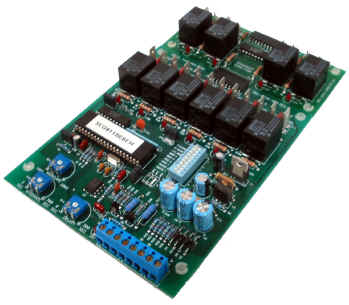

745 Series
Digital Step Controllers

The 745 Series is a full featured electronic step controller. A base board is available in 4 or 6 stages, with "plug-in" expansion boards for up to 14 stages of N.O. isolated pilot duty relays.

The 745 Series is capable of accepting 2-10 VDC and 4-20 mA input signals. The 745 Series features an optional on board thermostatic setpoint with a remote temperature sensor for dedicated heating or cooling applications.

Applications

     Compressors, and or unloaders

     Pumps

     Blowers

     Fans

     Boilers

     Electric heating elements (circuits)

Features

     N.O. isolated relay output

     LIFO or FIFO operation

     Adjustable stage delay

     L.E.D. indicator for each stage



745 Series Product Data 745-Seires Stage Expansion Product Data
745 Series On Board Stat Product Data
