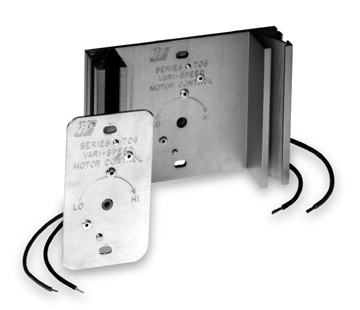

706-31 and 706-32 Series
Electronic Fan Speed Controls

The 706-31 and 706-32  Series electronic, variable fan speed controller is designed to provide fixed or proportional speed control of single phase shaded pole or PSC type motors.  The controller phase proportions the power to regulate motor RPM based on an external microsecond pulse signal typically furnished by an energy management system

Applications for Direct Drive Motors

      Propeller (blade) fan blowers

      Squirrel cage fan blowers

      Non-air moving devices (pumps), etc.



Specifications

     Model 706-31:          Max. Current 5 amps

     Model 706-32:          Max. Current 10 amps

     Line Voltages:          120/208/230/277 VAC



706-31 and 706-32 Product Data
