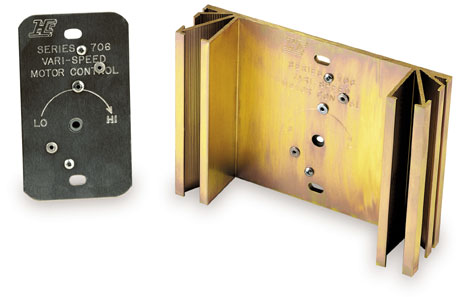

706-123S Series
Fan Motor Speed Controllers



The 706-123S Series multiple voltage Electronic Fan Motor Speed Controller is designed to provide manually adjustable proportional speed control for single phase shaded pole or permanent split capacitor (open frame) motors. The 706-123S Series may be used for any nominal voltage between 120 and 277 volts.



Applications

The 706-123S Series Controllers are designed for use with permanent split capacitor or shaded pole motors that have been evaluated for speed control regulation. The 706-123S is designed for direct connected propeller (blade) or blower (squirrel cage) fan type applications, but may be applicable to other non-air moving type motor drive requirements typical of  pumps, etc.

Applications should not exceed the FLA current rating for any given motor speed setting.



Available Models

     706-123S 5 Amps, 120 through 277 Volts
     706-123SB 10 Amps, 120 through 277 Volts
     706-123SC 15 Amps, 120 through 277 Volts


706-123S and 706-4S Series Product Data
