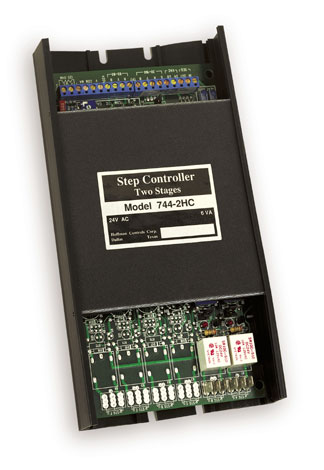

744-HC and 744-HCP Series
Electronic Step Controllers

The 744-HC and 744-HCP series are "first on/last off" electronic step controllers. They are available in 2, 4 or 6 stages, with S.P.D.T. isolated pilot duty relays. The 744-HC Series is capable of accepting five electric/electronic input signals. The 744-HCP Series features an on board Pneumatic transducer that directly accepts 0 – 15 psi.

Applications

     Compressors, and or unloaders

     Pumps

     Blowers

     Fans

     Boilers

     Electric heating elements (circuits)



Features

     N.O./N.C. isolated relay output

     Direct or Reverse mode selection

     Adjustable deadband

     Adjustable differential

     L.E.D. indicator for each stage



744-HC and 744-HCP Series Product Data 744-HC and 744-HCP Series MS Wiring Diagrams
744-HC and 744-HCP Series Installation & Operating Instructions 744-HC and 744-HCP Series Recalibration Instructions
744-HC and 744-HCP Series Calibration Curve 744-HC and 744-HCP Series Wiring Diagrams
744 Series Engineering Bulletin
