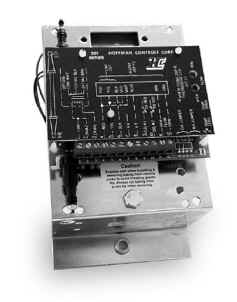

201-7BR(DA) Series

The 201-7BR(DA) Series Controls are designed to directly replace the former 201-5 and 201-7 Series products which are no longer in production.

The former 201-5 and 201-7 Series products accepted a maximum damper shaft extension of 1.25". The replacement model utilizes the new 241-2 Series Actuator design. It is inverted on a special mounting bracket and accepts longer shafts.

The 201-7BR(DA) Series Controller comes pre-wired for DA (Direct Acting) operation. The Actuator is set up for CW to Close operation. Both Open and Close Damper Override inputs are available.

Applications

This replacement controller functions in every respect identically to the current 200-3 Series product. For details see Form # 200-3 DA/RA 040-020 as well as all supporting 202 interface and application options.

This replacement option is only physically designed to accomodate the former 201-5 and 201-7 series products. This replacement model has all of the features and functions of the former models.

Features

Adaptable to 3/8" or 1/2" shaft (adapter included).

Simple installation.

Improved Actuator motor.

On-board velocity sensor.

Damper Override inputs (Open and Close).

Direct Acting/Reverse Acting operation capability.



201-7 BR(DA) Product Data 201-7 BR(DA) Installation & Operating Instructions
201-7 BR(DA) Troubleshooting Procedures
