200-3 Series

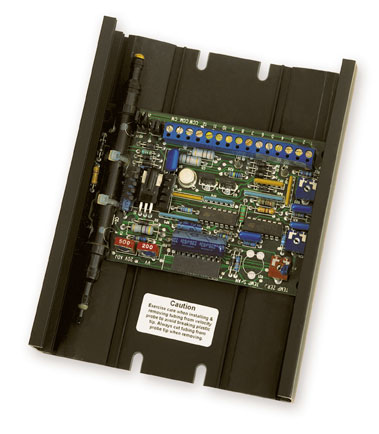

Electronic VAV Flow Controller

The 200-3 Series electronic Flow Control is a multiple purpose flow actuator for variable air volume (VAV) air distribution systems. The 200-3 is capable of precise air flow and temperature regulation within the space being served by the terminal unit.

The 200-3 Series Flow Controls can provide pressure independent control (with thermostat input), constant volume, or constant pressure regulation. The unique "flow through sensor" provides flow or pressure regulation over the entire flow or pressure range.

The pressure independent controller compares the flow signal with the electronic thermostat signal and meters the appropriate volume of air to the space, regardless of terminal (damper inlet) pressure. This control function is referred to as "Pressure Independent VAV Control".

Flow Control Logic

•   Damper override “open or closed” is featured on all 200-3 Series flow controls.

•   Field adjustable min. and max. flow limits on the flow controller or thermostat.

•  Plug-in interface connector.

Flow Sensor

•  Integral part of 200-3 Series flow control assembly.

•  Responds to airflow from 0 to 4000 ft./min.

•  Averages flow from velocity pressure pickup.

Damper Actuator

•  Directly coupled to damper shaft.

•  Selectable 45, 60 or 90 degree stroke either clockwise (CW) or counterclockwise (CCW).

•  24 Volt AC motor.

200-3 Series Electronic VAV Flow Controller Product Data 200-3 Series Flow Limit Calibration
200-3 Series Flow Logic Damper Override Product Data 200-3 Series Zero Pot Calibration
200-3 Series Flow Controller Direct Acting and Reverse Acting Product Data 200-3 Series Principles of Operation
200-3 Series Flow Controller Double Duct DA/RA Product Data 200-3 Series Troubleshooting Guide
200-3 Series Installation & Operating Instructions

200-3 Series Calibration Curve (Velocity vs. Velocity Volts)
