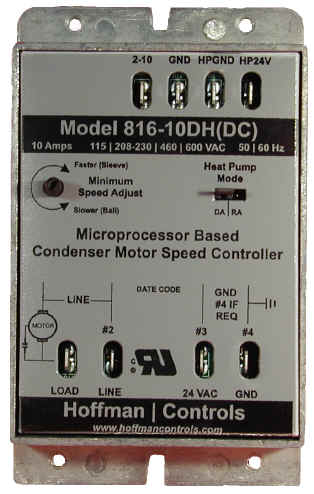

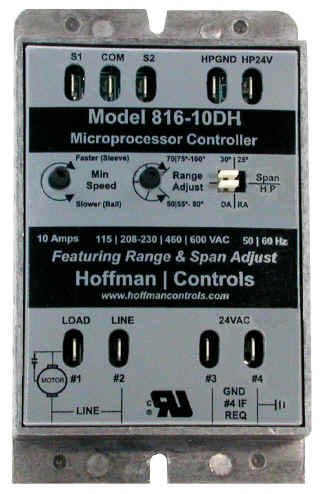

816-10DH and 816-10DH(DC)
Electronic Head Pressure Controller
(
Replacement for ICM 325)

The NEW 816-10DH Electronic Head Pressure Control modulates (varies) condenser fan motor speed in low ambient temperatures, varying the air volume through the condenser consequently regulating head pressure.

In Heat Pump installations, the Heat Pump input is used to observe the presence of 24VAC. Heat Pump Mode “A” and “B” jumpers are configured based on a manufacturer’s method of energizing the reversing (changeover) valve. The Heat Pump will override normal control and allow full speed fan operation when in the heating mode.

Applications

Typically utilized on air-cooled condenser fan motors found in air conditioning  and refrigeration systems. They are used on the following motor types:

     Single phase single speed

     Open frame – PSC or shaded pole

     Direct drive, sleeve or ball bearing



Typical Installations

     Commercial A/C

     Supermarkets

     Computer Rooms

     Frozen food storage

     Humidity Control

     Glycol Coolers



Features

      A special “Range Adjust” allows differentiation between TXV (Thermal Expansion Valves) and Capillary Tube/Orifice applications for optimum low ambient performance.

      Dual sensor  or 2-10 VDC input.

      Applicable for all refrigerant types

      Monitors liquid line temperature (liquid subcooling).

      Eliminates compressor "slugging" (oil migration).

816 Series Product Data 816 Series Installation & Operating Instructions
812/814/816 Series Wiring Diagrams 816-10D Series Dimensions Diagram
812/814/816 Series Service Data 812/814/816 Series Troubleshooting Guide
816-10DH(DC) Series Product Data 812/814/816 Series Weatherproof Kit Installation & Operating Instructions
812/814/816 Series Heat Pump Modes 812/814/816 Series Low Ambient Considerations
816-10DH(DC) Installation & Operating Instructions
