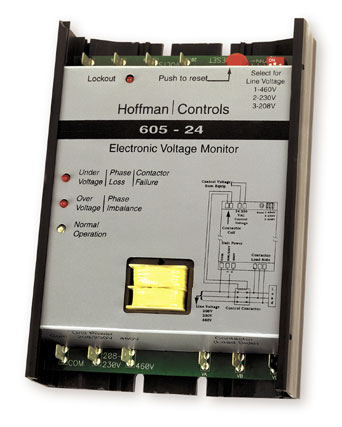

605-24
Electric Voltage Monitor

The Electric Voltage Monitor protects equipment (motor or compressor) by monitoring incoming line voltage. The monitor automatically disconnecting the protected equipment from the line in the event of the following occurrences:

     Phase Loss (Single Phase)

     Low Voltage (Brownout)

     High Voltage (Overvoltage)

     Imbalance (Voltage)

     Contactor Failure



Applications

Provides protection against the premature electrical failure of three phase motors and includes "short cycle" protection for compressors.  This controller is especially suited for protection of compressors utilized in HVACR  installations.  It can be used on any three phase motor rated at 208, 230, 240, 460 and 480 Volts.

Features

      Monitors load side of contactor for failure

      Identifies failure type

       –  Red LED indicates fault status

       –  Green LED indicates normal operation

      Protects against nuisance trips

      Automatically resets up to three times

      Built in short cycle protection

      Lockout occurs after three default starts

      Manual reset required



605-24 Product Data

605-24 Installation & Operating Instructions
