Application

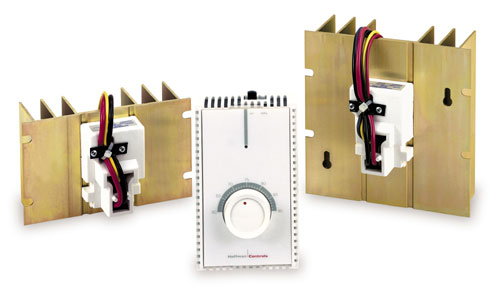

The 701
Series SCR controller is designed for use in a master/slave
configuration/connection. Every master or slave controls one phase and/or
circuit within system. Only one master is required for each thermostat input
for single or three phase applications.
Features
• Accurate temperature control within 0.1°F.
• Fast response time to temperature changes.
• RFI (Radio Frequency Interference).
• For use on any electric heating element
application.
Specifications
Voltage:
120/208/240/277/480 Volts
Current:
12.5 to 25 Amps

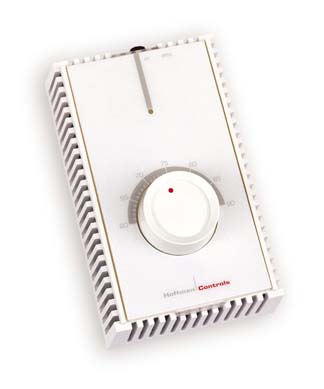

Thermostat:
10K Thermistor
Optional
Thermostat Inputs: See 707 Series
Product Data for other inputs
|
